Model 458-3SLB

Model 458-SM-2-16
2 x 16 Transparent Switching Module

Main Features

  • High Performance transparent solution designed to automate testing of ADSL, ADSL2, ADSL2+, & VDSL2 chip/modem/DSLAMs
  • Bidirectional
  • Low Crosstalk/Low Insertion Loss
  • Plugs into Model 458-CC-16/458-CM (16-slot) or
    458-3SLB (3-Slot) rack-mounted chassis
  • Can be controlled remotely via RS-232, Ethernet or
    IEEE-488 (GPIB)
  • Download pdf

    product overview

    The Model 458-SM-2-16 Transparent Switching Module is a transparent, electrically neutral, multiplexing/demultiplexing device that allows up to sixteen incoming lines to share (be directed to) up to two independent local loop simulator output channels, or two incoming lines to share (be directed to) up to sixteen independent local loop simulator output channels. The user may select one or two of the inputs (or outputs) out of sixteen, with the unselected paths being terminated with 100 ohms.

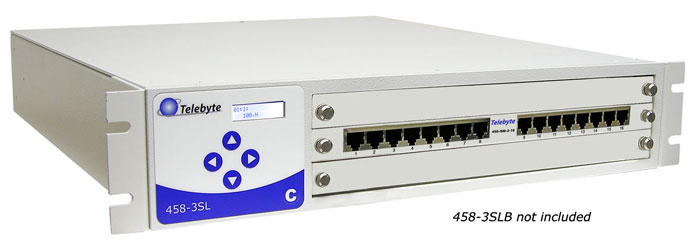

    This powerful module is plugged into our Model 458-3SLB (3-Slot) or 458-CC-16/458-CM (16-Slot) rack-mounted chassis where settings are controlled by RS-232, Ethernet or IEEE-488(GPIB). The modular design of Telebyte's products allows the 458-SM-2-16 to be combined with our local loop simulator products for a wide variety of test configurations.

    Product Specifications

    Model 458-SM-2-16
    2 x 16 Transparent Switching Module
    Signal Switching CapabilityMultiplexing:
    16 balanced input lines to 1 of 2 balanced output lines (16x1); or
    16 balanced input lines to both balanced output lines (8x2) Demultiplexing:
    1 balanced input line to 16 balanced output lines (1x16); or
    2 balanced input lines to 8 balanced output lines each (2x8)
    Insertion Loss Less than 0.5 dB from DC to 30 MHz
    Less than 1 dB up to 60 MHz
    Noise Floor Less than -140 dBm/Hz from DC to 30MHz
    Tip and Ring Balance Better than 53 dB up to 12 MHz
    Degrading by 20 dB per decade from 12 MHz to 30 MHz
    Return Loss 26 dB minimum up to 30 MHz (100-ohm reference)
    Crosstalk Between Lines Maximum -90 dB up to a minimum frequency of 30 MHz
    Temperature Operating: 0°C to 50°C (32°F to 122°F)
    Storage -20°C to 70 °C (-18°F to 158°F)
    Operating Relative Humidity 0% to 95% relative humidity (non-condensing)
    Dimensions Overall: 12.21"H x 0.86"W x 20.85"D
    (310mm H x 22mm W x 529mm D)
    Connectors 16 RJ-45's on front, 2 RJ-45's on back
    Relay Cycles of Operation 5,000,000 cycles
    Toxic Materials Complies with RoHS Directive

    Specifications are subject to change without notice. Made in USA
